LUXX 200w LED Bar 208-277v

Original price $359.00 - Original price $394.00
Original price
$359.00
$359.00 - $394.00
Current price $359.00
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
  • Free shipping in the USA (lower 48 states)
  • Ships in 2-5 business days
  • Ships in lower 48 states only
Bulk / Commercial Discounts and HUGE Rebates

Email us or call 888-611-9305 TODAY! Rebate inquiries here.

Financing Options

Checkout and pay with Sezzle, Shop Pay Installments or PayPal Pay In 4.

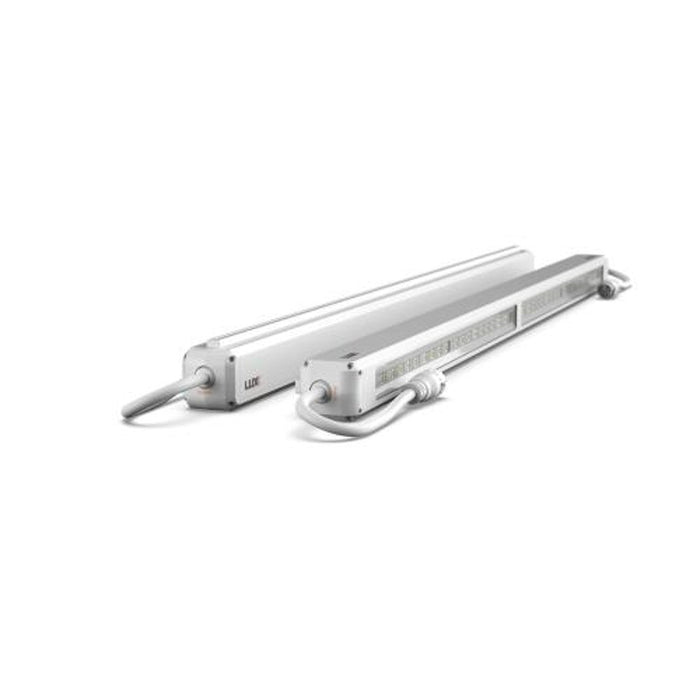

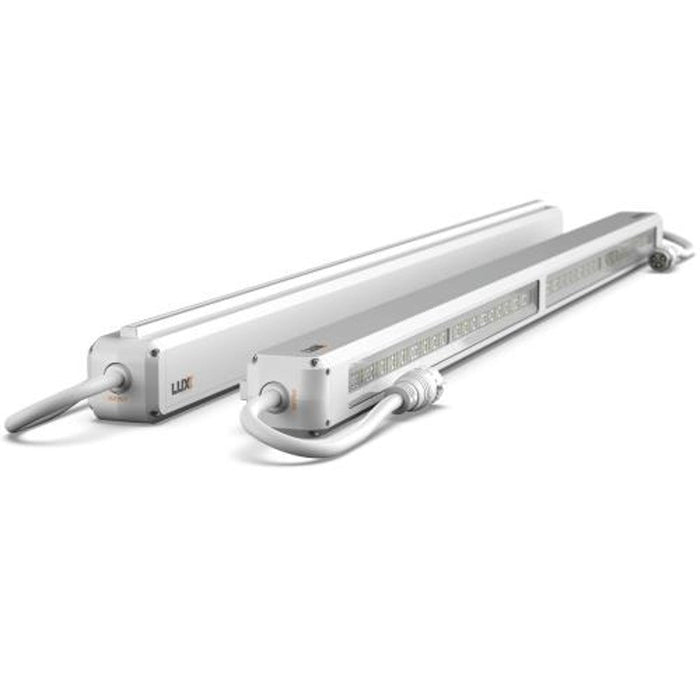

LUXX 200w LED Bar 208-277v

The Luxx 200W LED Bar is designed and built using top-quality components including top bin diodes that produce a plant-loving Veg Spectrum.  The 200w LED Bar form factor is adaptive to any cultivation environment by being able to select your wattage and footprint. The 200w LED Bars can be run in single stacked, multi-stacked, or a greenhouse grow setting. The modular design allows you to customize and scale up your 200W LED Bar system to fit your operation needs.

The 80R spectrum provides a full spectrum with maximum red photon content. The blue-green balance supports healthy plant morphology and enables an improved working environment and improved visual inspection for growers.

The 90R spectrum is a high-efficiency, blue-red spectral combination specifically designed for stacked grow architectures. In the vegetative growth phase, the 90R spectrum achieves healthy, fast-growing plants with shorter stature perfect for stacked growth.




Features

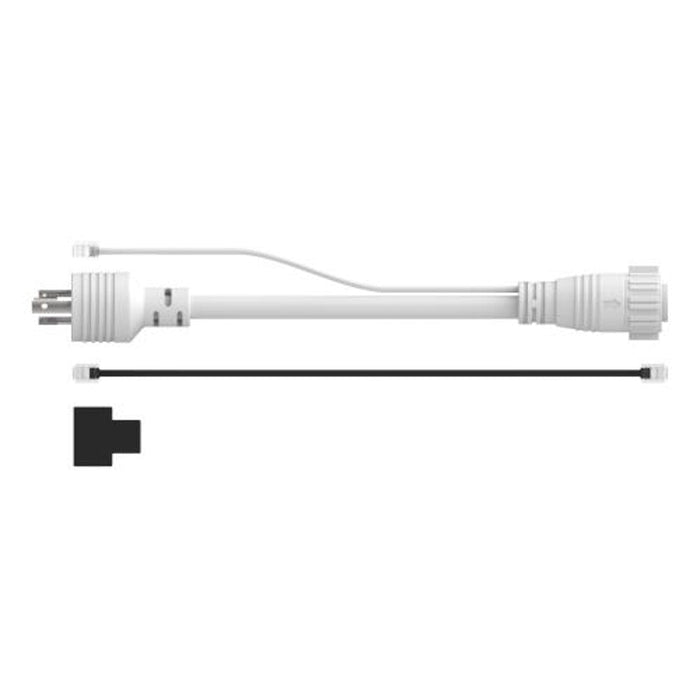

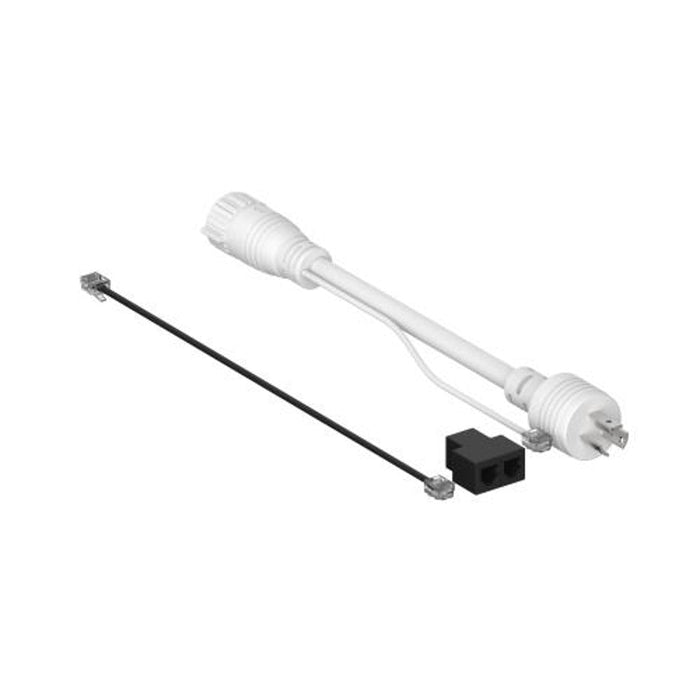

  • Includes power cord (if selected as a variant above 'add to cart' button)
  • ETL Listed

  • Modular design

  • Mounts to Unistrut

  • Bar bracket SOLD SEPARATELY, strongly recommended to provide a fully modular fixture to fit both 4’ and 5’ footprints.

  • Configure a 200W, 400W, 600W, 800W, or 1000W

  • Available in 80% red or 90% red

  • All in one design

  • Plug & Play

  • 5-year warranty



Connect up to 20 LED fixtures

A group of up to 20 Luxx Lighting 200w Bar 208-277v fixtures can be connected to the Luxx NX-1 controller.

One power cord is needed per 20 lights on 277V or 15 lights on 240V. Daisy-chain cable included with lights.



More information



PAR

80% Far Red



90% Far Red


Spectrum

80% Far Red



90% Far Red



Dimensions





Specs

Far Red 80%

Total Length: 1240mm or 49”

Total Width: 60mm or 2.36”

Total Height: 72mm or 2.83”

Total Weight: 3.26kg or 7.20lbs

Current:

  • 208V 0.96A
  • 220V 0.90A
  • 240V 0.83A
  • 277V 0.65A

Input Current: 1.0A - 0.65A

Input Power: 200W

Min Power Factor: >0.95%

Thermal Managment: Passive

Lifetime: L90: >54,000 hrs

Dimming: 40% to 100% - EXT/OFF If using  NX-1, only dimmable down to 50%.

Max Operation Temp: 104 °F (40 °C)

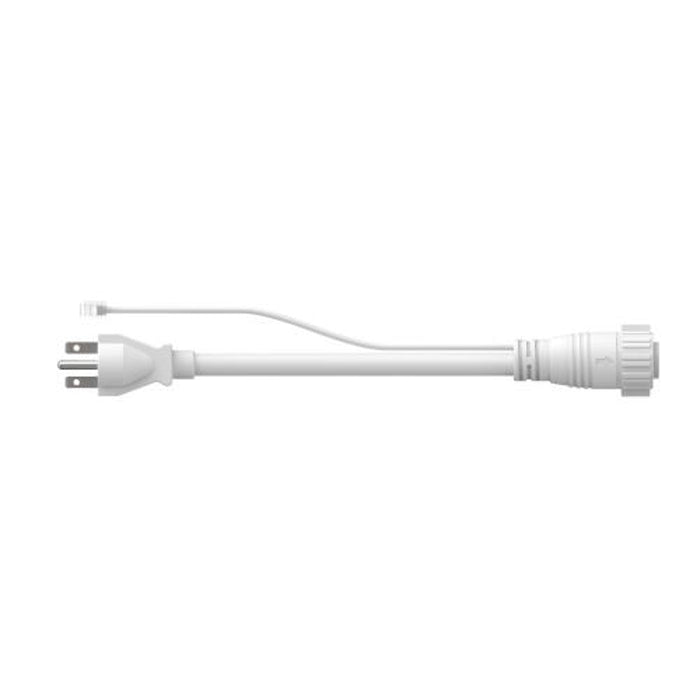

Power Cord Selection: Required 10’ 240v or 10’ 277v power cord options available

Rated Mains: Voltage 200V-277V

Voltage Range: 200V - 305V

Mains Frequency: 50/60Hz

Operation Frequency: 50/60Hz

Max Daisy Chain Quantity:

  • 208V- 15
  • 220V- 16
  • 240V- 17
  • 277V- 20


Far Red 90%

Total Length: 1240mm or 49”

Total Width: 60mm or 2.36”

Total Height: 72mm or 2.83”

Total Weight: 3.26kg or 7.20lbs

Current:

  • 208V 0.96A
  • 220V 0.90A
  • 240V 0.83A
  • 277V 0.65A

Input Current: 1.0A - 0.65A

Input Power: 200W

Min Power Factor: >0.95%

Thermal Managment: Passive

Lifetime: L90: >54,000 hrs

Dimming: 40% to 100% - EXT/OFF If using  NX-1, only dimmable down to 50%.

Max Operation Temp: 104 °F (40 °C)

Power Cord Selection: Required 10’ 240v or 10’ 277v power cord options available

Rated Mains: Voltage 200V-277V

Voltage Range: 200V - 305V

Mains Frequency: 50/60Hz

Operation Frequency: 50/60Hz

Max Daisy Chain Quantity:

  • 208V- 15
  • 220V- 16
  • 240V- 17
  • 277V- 20
