Horticulture Lighting Group 260 Watt V2 BSpec Quantum Board DIY Kit (Veg)

  • Availability: In stock.
    • Canada shipping available
    • Free shipping in the USA (lower 48 states)
    • Free shipping to Canada (taxes due to courier)
    • Ships discreetly
    • Ships in 1-3 business days

    260 Watt DIY LED Grow Light Kit with Two High-Efficiency QB288 B-Spec LM301H + Blue 470nm Quantum Boards


    Top Features

    • Dimmable down to 20% from 285 Watts
    • 500 watt HID replacement
    • Veg Footprint 4' x 4' (16 sq ft)

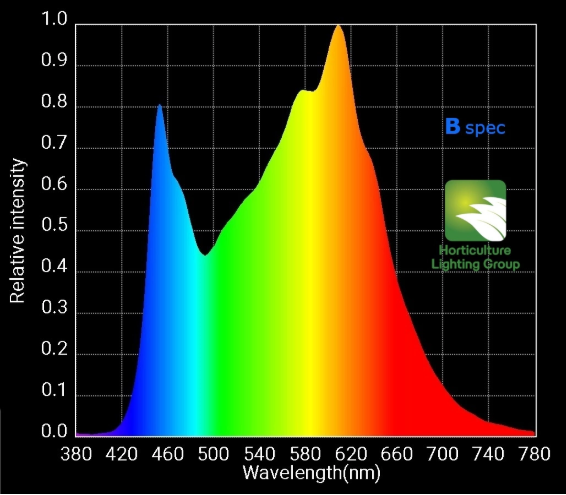

    • 3500K + Blue 470nm white light full spectrum
    • Reliable passively-cooled design
    • Better canopy light penetration with diffused light
    • Ideal for vegetative growth
    • 1-year manufacturer's warranty

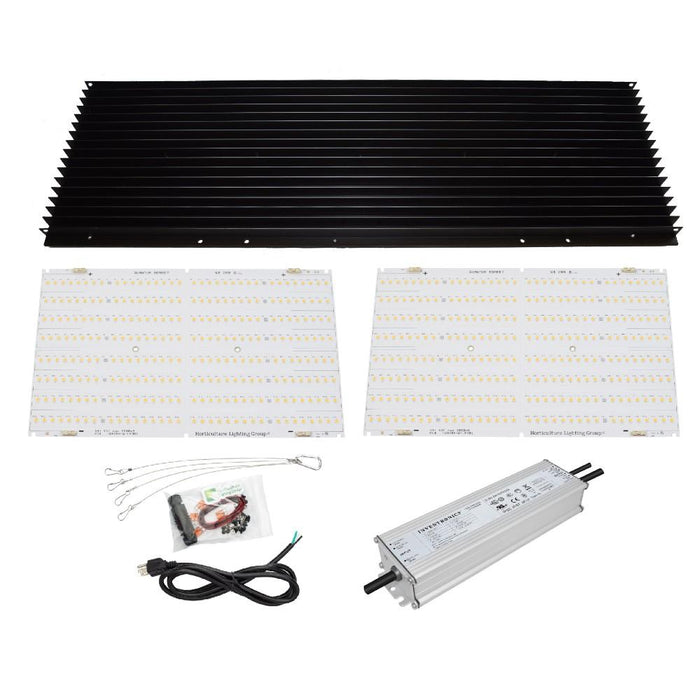

      Kit Includes

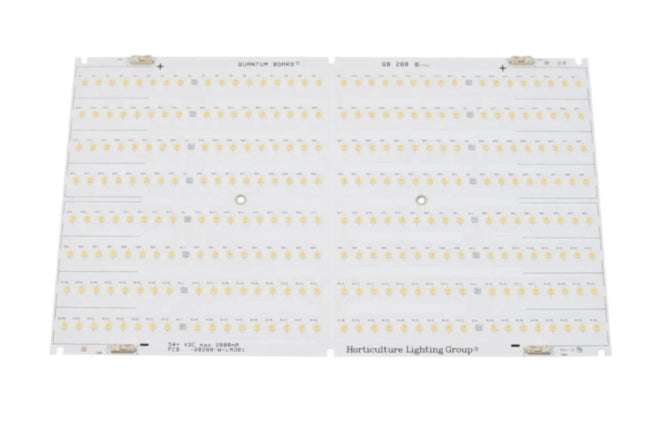

      • 2 x QB288 V2 B-Spec USA-made Quantum Boards with Samsung LM301H + Blue 470nm Top-Bin Diodes
      • 1 x Slate 2 Double Predrilled 600mm Heatsink
      • Inventronics LED Driver. Boards should be wired in series with the driver for maximum output.
      • Full-range potentiometer (VIDEOhow to hook up dimmer)
      • 6ft Nema 5-15P 16/3 SJTW NA Power Cord or equivalent for standard 120VAC with cable connector
      • 2ft solid core Wire, 2x Wago Connectors for DC wiring
      • Hanger Clips

      Assembly instructions



      • Dimensions: 60cm x 20.50cm
      • Lamp Efficacy with QB288 V2 B-spec 2.5 µmol/J
      • Board Level Efficacy with QB288 V2 B-spec 2.73 µmol/J
      • No Thermal Interface Material is required between the LED board and the heatsink
      • Remove black plug on driver and use Philips head screwdriver for dimming
      • Kit is shipped disassembled and requires assembly before use
      • Tools required: screwdriver and wire strippers (or scissors). No soldering required.
      • International orders only: If you require something different than the plug type offered you will need to purchase a plug adapter for your country. HLG may not be able to offer a warranty on this unit out of the USA and Canada.


      LED Driver color wires


      Molex Lite Trap
